Professional Audio Professional Audio
Paging System Power Amplifiers

The PS-4806 is designed with 6 zones paging, equipped with individual
selector and "ALL ZONE" selector switch. Features 6 paging zone outputs
and 6 Mic/Line inputs with a power handling of 480W.
The power output is equally distributed when individual channel is selected
for broadcasting and power output is at maximum when “ALL ZONE” is
selected for paging.
Equipped with MP3 player module with recording and FM RADIO function
for dynamic use.
The broadcasting priority level can be set via the MP3 player screen
PS-4806 interface or though computer control software.

Paging amplifier System. 4 MIC inputs, 4 gain Microphone input channels (CH1-4) and line input channels (CH5-6) each
controls, 4 Phantom power switches, 2 line has separate volume/tone controls, and for microphone channels have
inputs, 1 Rec. output, 1 pre-output, 1 AMP input, phantom power and gain controls.
1 PM-01 or PM-06 input, FM antenna terminal, External connections are also available for signal input. In case of
USB port and switch, external control emergency there is 24V DC power supply and built-in siren and chime
connection for signal input, 6 zone outputs, 14 functions wich can also be from external memory.
outputs, telephone ringer & input.

INSTALLATION AND CONNECTION DIAGRAM

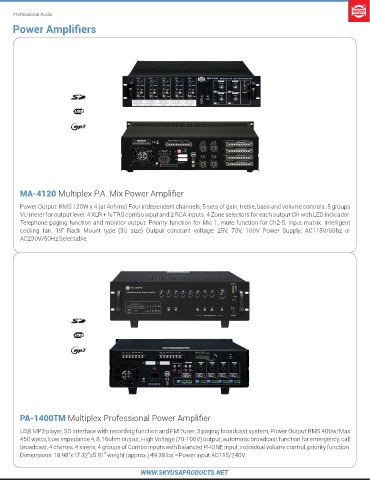

MA-4120 Multiplex P.A. Mix Power Amplifier

Power Output: RMS 120W x 4 (at 4ohms) Four independent channels, 5 sets of gain, treble, bass and volume controls. 5 groups
VU meter for output level. 4 XLR + ¼ TRS combo input and 2 RCA inputs. 4 Zone selectors for each output CH with LED indicador.
Telephone paging function and monitor output. Priority function for Mic 1, mute function for Ch2-5. Input matrix. Intelligent
cooling fan. 19” Rack Mount type (3U size) Output constant voltage: 25V, 70V, 100V Power Supply: AC115V/60hz or
AC230V/50Hz Selectable.

PM-01 Desktop Microphone

The PM-01 microphone can be used as a slave
unit or as a master unit through a back panel
selector. Up to 3 PM-01 can be connected to the
PS devices which supply the power without the
need of extra connection.

The PM-06 desktop microphone can choose and broadcast from zone 1-6
from its control panel or “ALL ZONE” function. Also can be used as a slave or
as a master unit through a dip switch selector. Has built-in microphone and
RCA audio input, also RS485 input jack that can connect bt CAT-5E cable for
PM-06 Desktop Microphone AES digital audio trasnmission that works up to 300m distance. PM-06 has PA-1400TM Multiplex Professional Power Amplifier
The PM-01 microphone can be used as a slave a built-in chime function, and the chime can be modified by connecting the USB MP3 player, SD interface with recording function and FM Tuner, 3 paging broadcast system, Power Output RMS 400w/Max
unit or as a master unit through a back panel USB port to a PC with support of Windows XP/7/8 operatring system. Can 450 watts, Low impedance 4, 8, 16ohm output, High Voltage (70-100V) output, automatic broadcast function for emergency, call
selector. Up to 3 PM-01 can be connected to the control to play up to 6 messages on OS-4806 also controls over Play / Stop / broadcast, 4 chimes, 4 sirens, 4 groups of Combo inputs with balanced PHONE input, individual volume control, priority function.
PS devices which supply the power without the Repeat functions. PM-06 operates on power supplied by PS-4806 instead Dimensions: 18.98”x17.32”x5.91” weight (approx.) 49.38 lbs –Power input:AC115/240V.
need of extra connection. of extra power supply connections.
