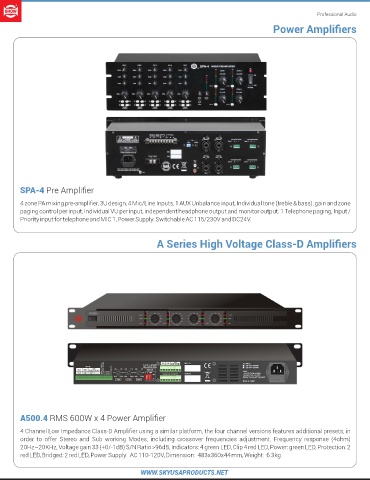

Page 12 - sky catalog

Professional Audio Professional Audio
Power Amplifiers Digital Audio Matrix System / Networking Connections

SPA-4 Pre Amplifier Rear image shows optional DANTE module

4 zone PA mixing pre-amplifier, 3U design, 4 Mic/Line Inputs, 1 AUX Unbalance input, Individual tone (treble & bass), gain and zone
paging control per input, Individual VU per input, independent headphone output and monitor output. 1 Telephone paging, Input /
Priority input for telephone and MIC 1, Power Supply: Switchable AC 115/230V and DC24V.

A Series High Voltage Class-D Amplifiers

MATRIX A-8

MATRIX A8 is dedicated music, paging, discussion and zone management solutions for Commercial Audio applications. Simple
for powerful, it offers state of the art DSP in a cost effective package.
20 x 20 Digital Matrix:
A500.4 RMS 600W x 4 Power Amplifier 8 analog IN / 8 analog OUT via local ports
4 digital IN / 4 digital OUT via local ports to analog panel I/O
4 Channel Low Impedance Class-D Amplifier using a similar platform, the four channel versions features additional presets, in 8 digital IN / 8 digital OUT via DANTE optional module
order to offer Stereo and Sub working Modes, including crossover frequencies adjustment. Frequency response (4ohm) Up to 192 IN x 192 OUT
20Hz~20KHz, Voltage gain 33 (+0/-1dB) S/N Ratio >96dB, Indicators: 4 green LED, Clip 4 red LED, Power: green LED, Protection: 2
red LED, Bridged: 2 red LED, Power Supply: AC 110-120V, Dimension: 483x360x44 mm, Weight: 6.3kg Applications: Bar, Restaurant, Shop, Parking, Factory, Meeting room, School.
